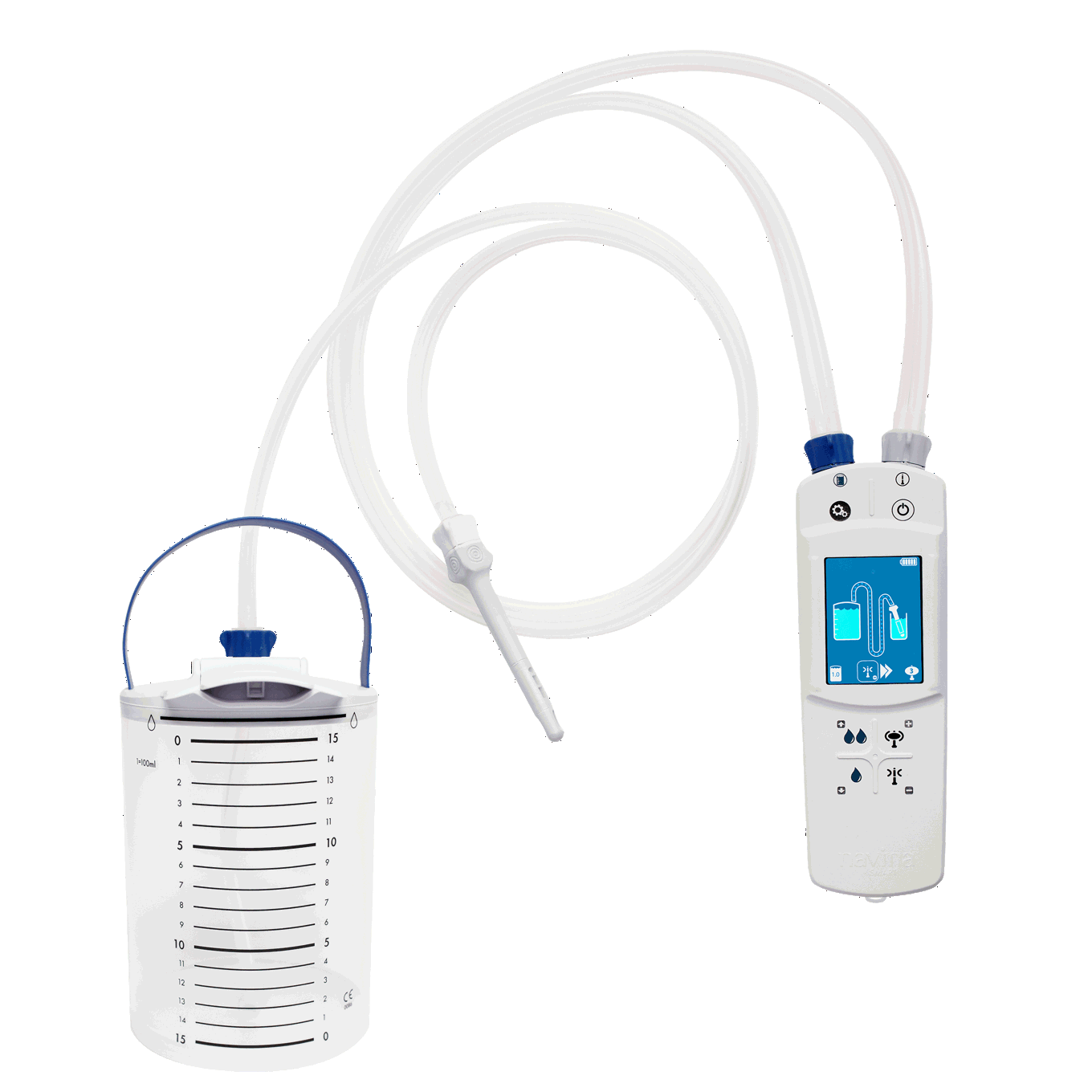

Bowel products Navina Smart

Navina Smart has software-controlled pumps that inflate a balloon and instill water into the bowel. Pushing the buttons allows for total control over the procedure.

It is easy to learn and practical to use. Navina Smart has built-in safety for maximum balloon size, water volume and water flow rate. It also allows you to easily follow the irrigation steps during the procedure.

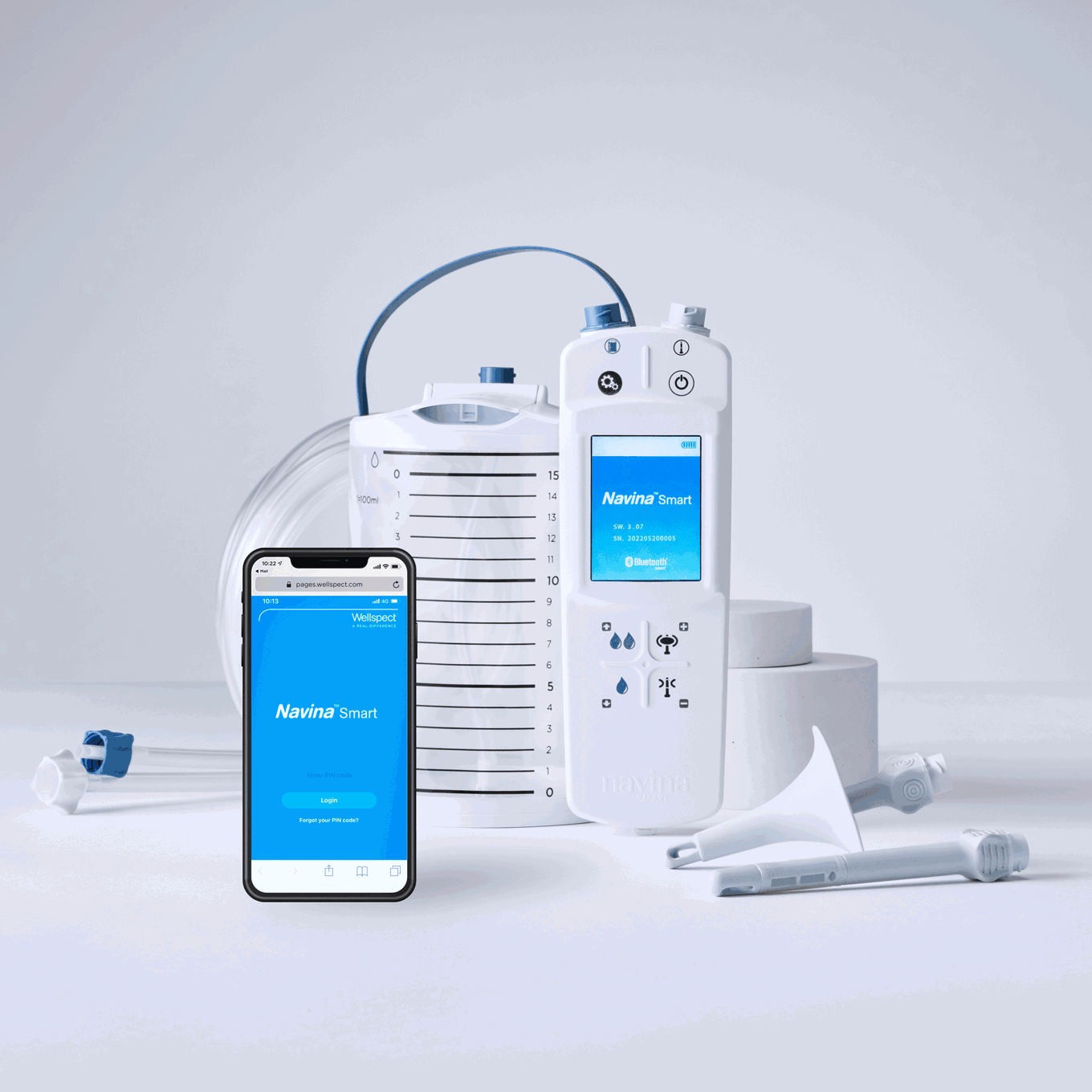

Navina Smart app

Navina Smart comes with an app that allows you to track and record your settings and progress, so that you can optimize your routine. All data from your latest irrigation, such as balloon size, amount of water, waterflow rate and duration time, can be transmitted to the Navina Smart app via Bluetooth.

Navina Smart app gives you the possibility to rate and share your data with your health care professional for evaluating your treatment.

Request information

Product information

Specifications

Product description

Transanal irrigation system

Product features

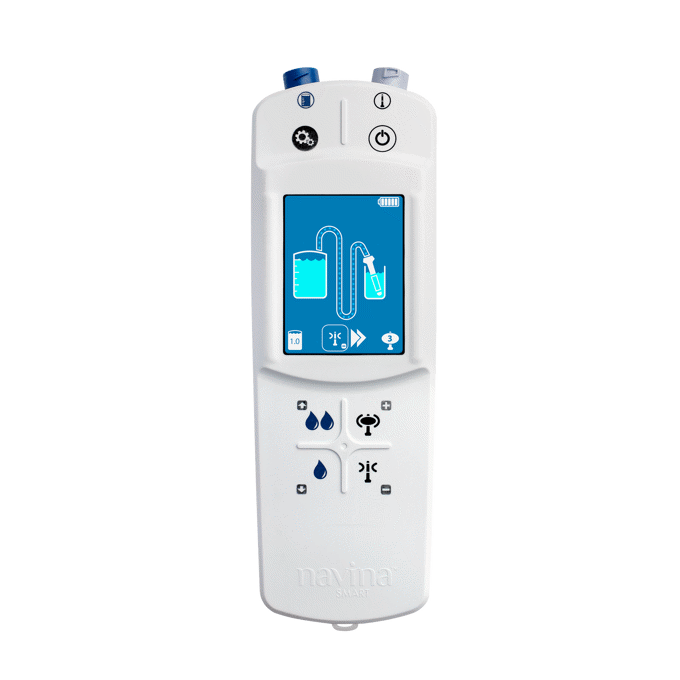

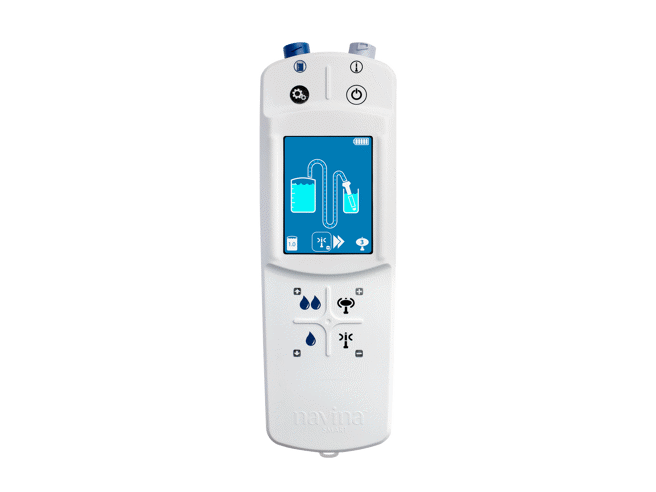

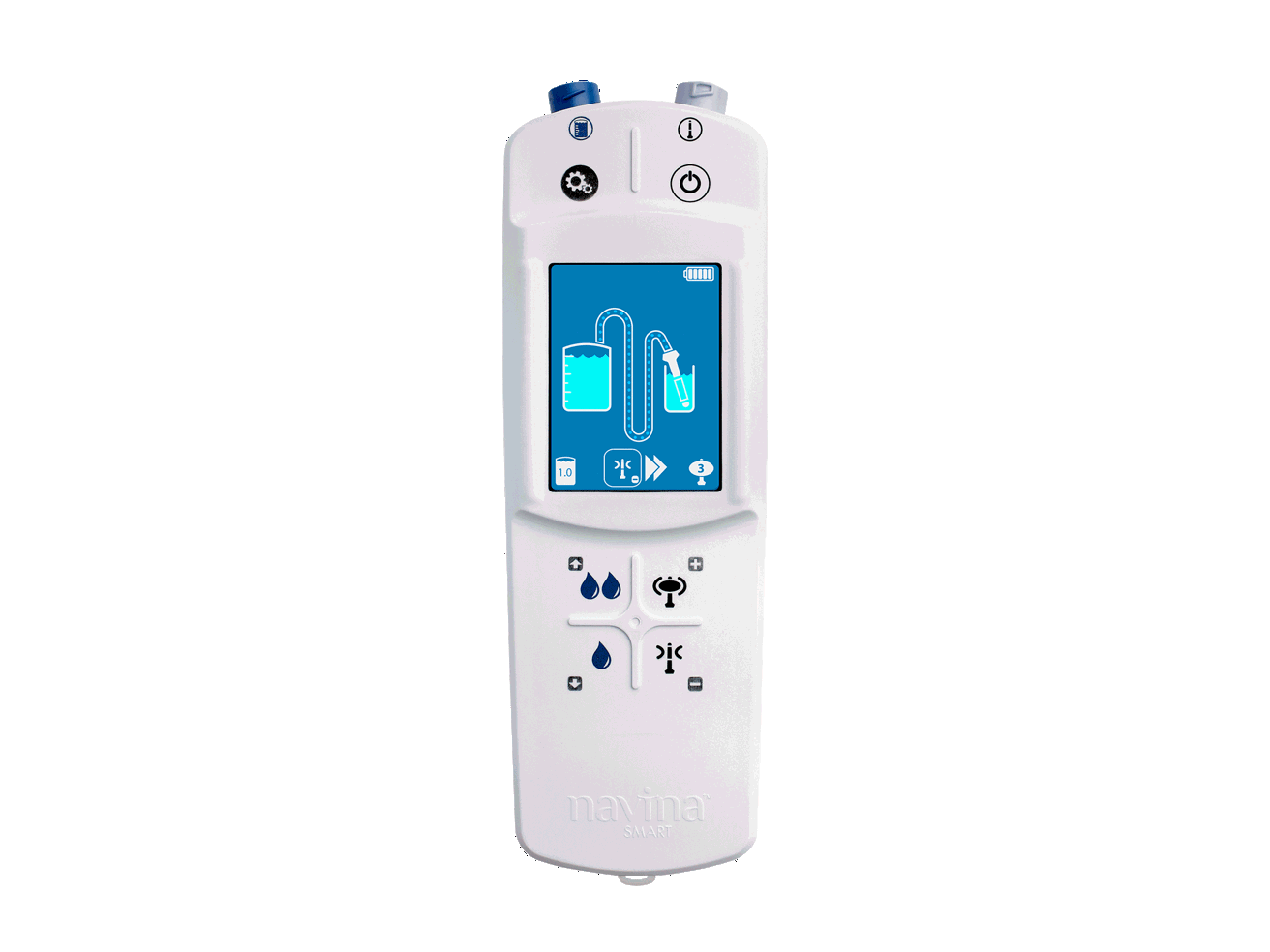

Navina Smart Control unit

  • Screen for observing settings, water flow and volume instilled as well as current balloon size.
  • Ability to preset different water flow rates on the droplet touch buttons for easy and fast change of water flow.
  • Touch button for control of balloon inflation, balloon will automatically stop at pre-set maximum size.
  • Rechargeable battery for at least 6 average irrigations.

Navina Smart App

  • See your irrigation progress over time visualized in graphs or tables, sorted by time, water amount, balloon size and water flow rate.
  • Option to rate and share your data with your healthcare professional for evaluating your treatment.

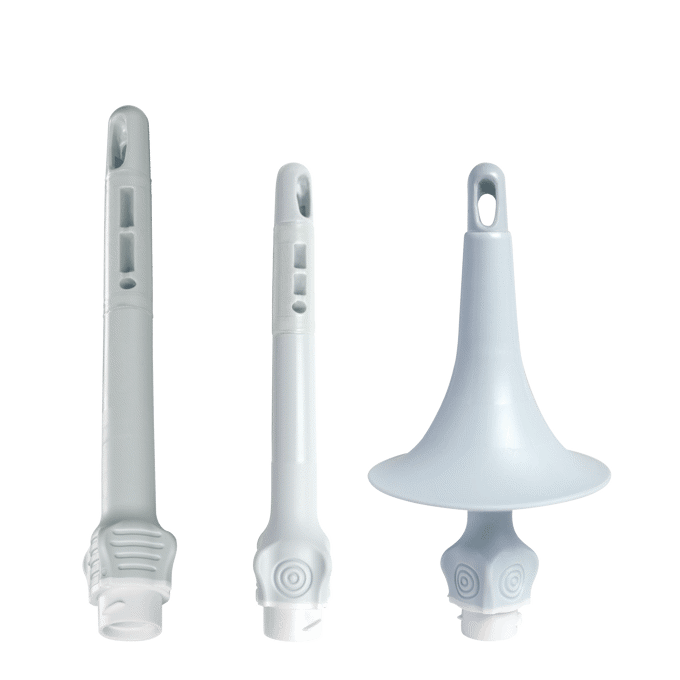

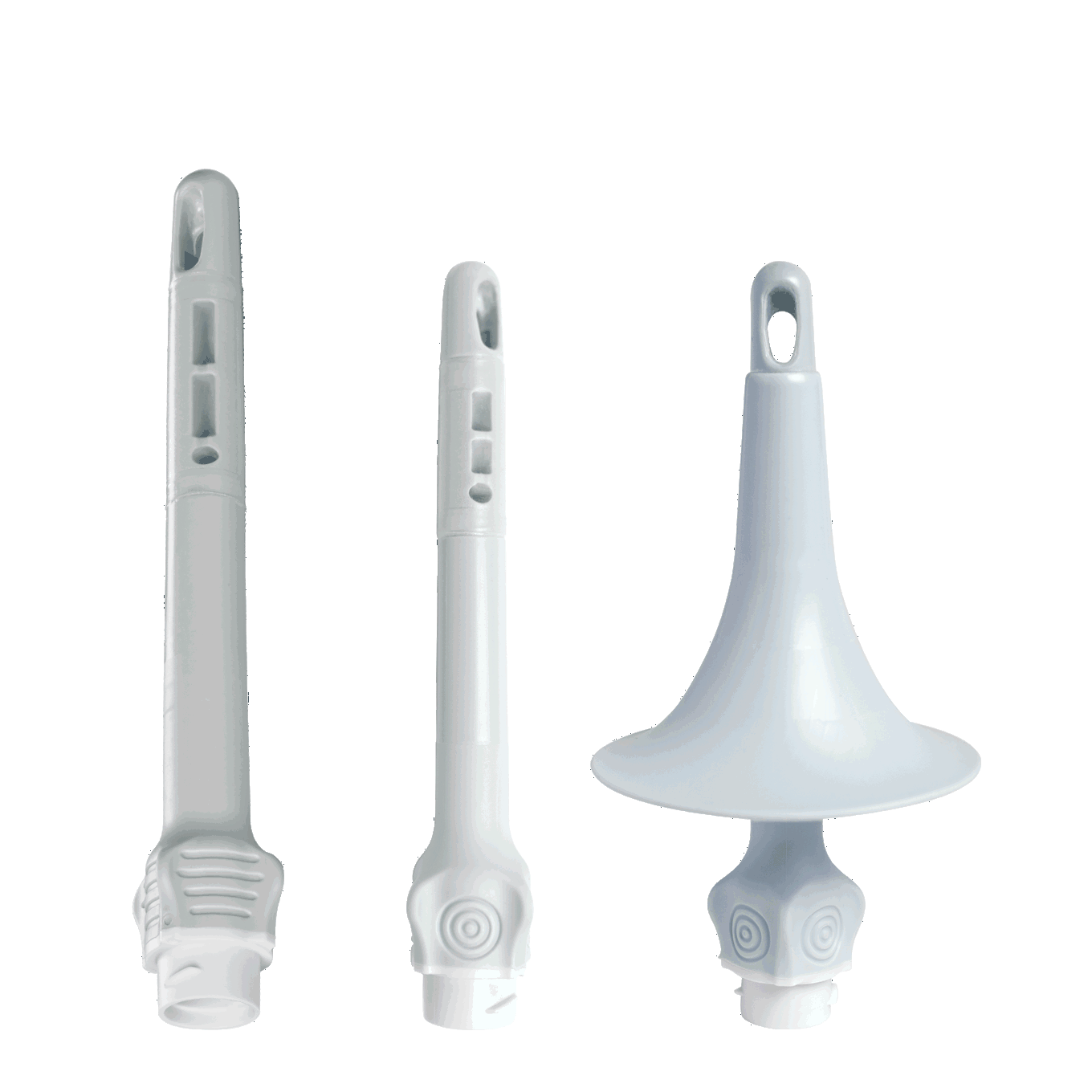

Catheters & Cone

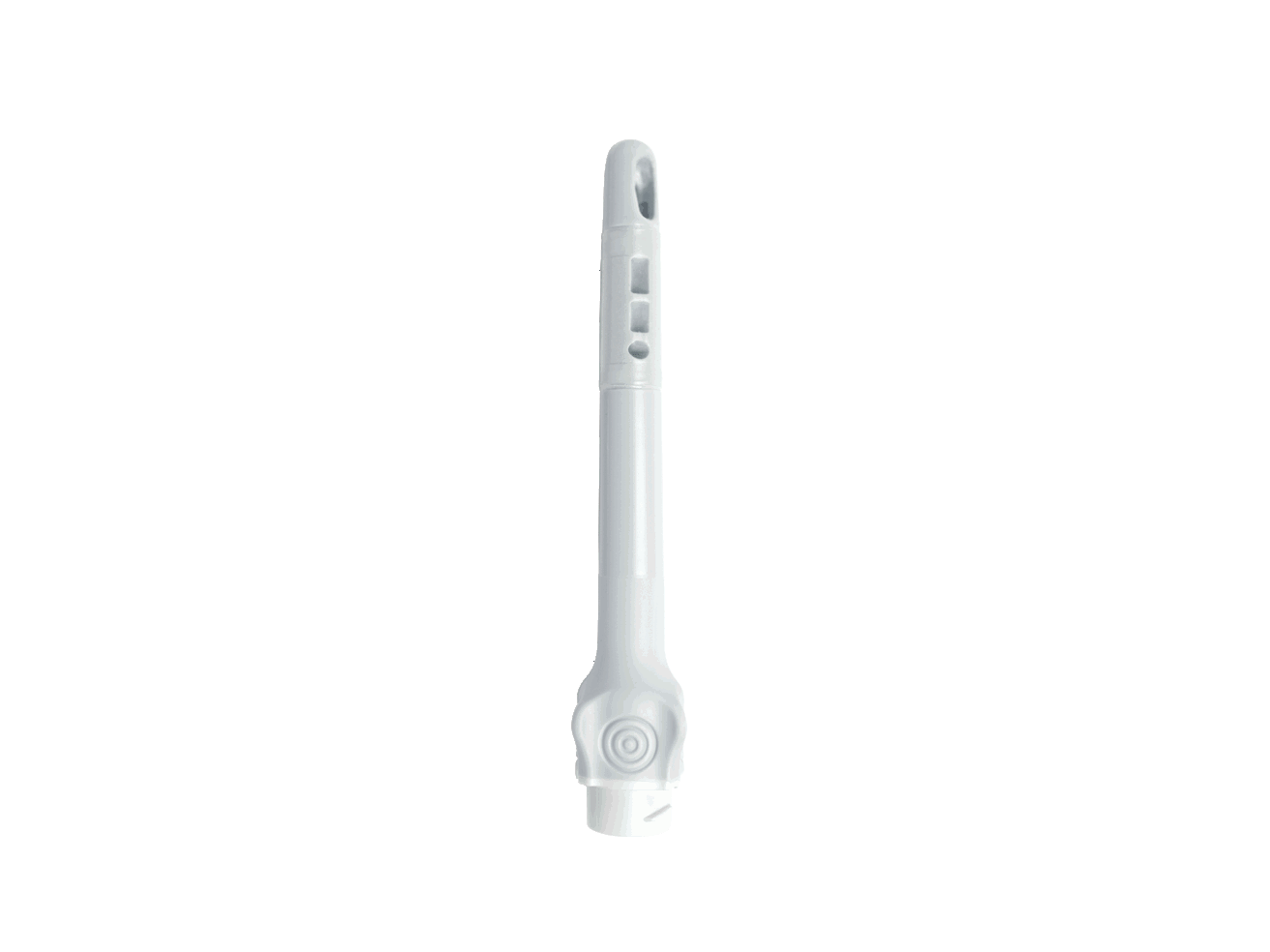

  • Navina balloon catheters are available in two sizes. Regular for adults only and Small from 12 years of age.
  • Balloon catheters with flexible and proven balloon seals the rectum and ensures the catheter stays in place.

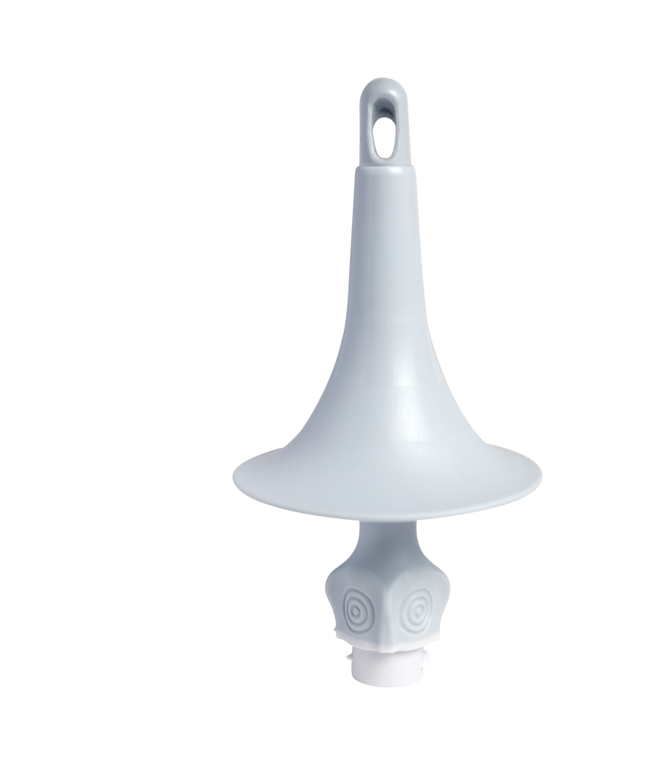

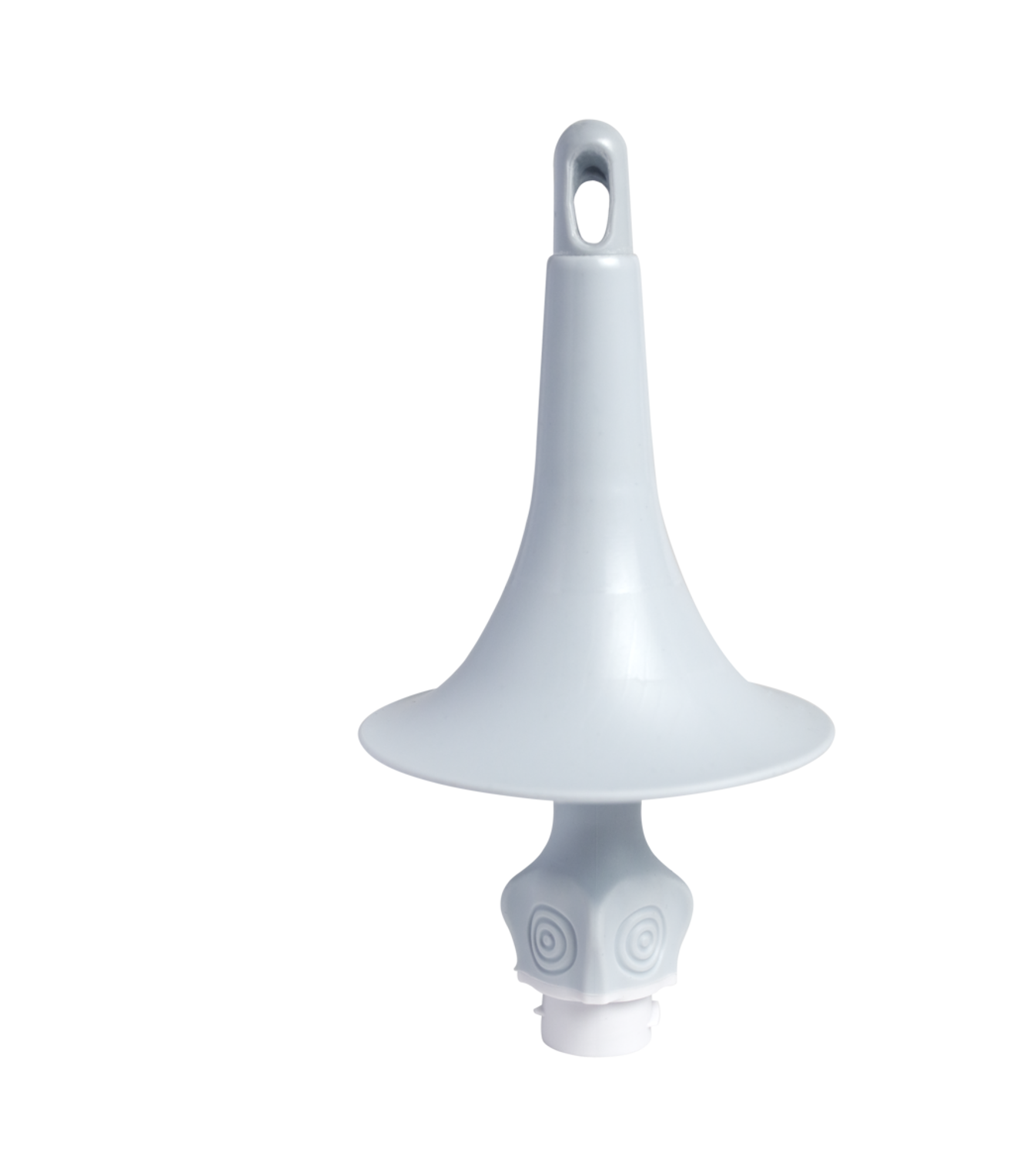

  • Cone shaped catheter for easy insertion and minimized leakage. From 2 years of age.
  • All rectal catheters are made of soft and flexible material with slippery hydrophilic surface for easy insertion and withdrawal.

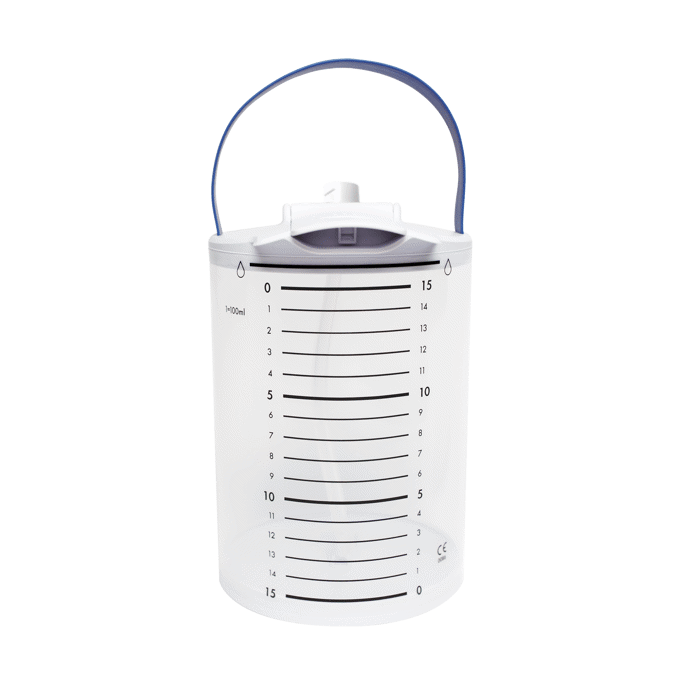

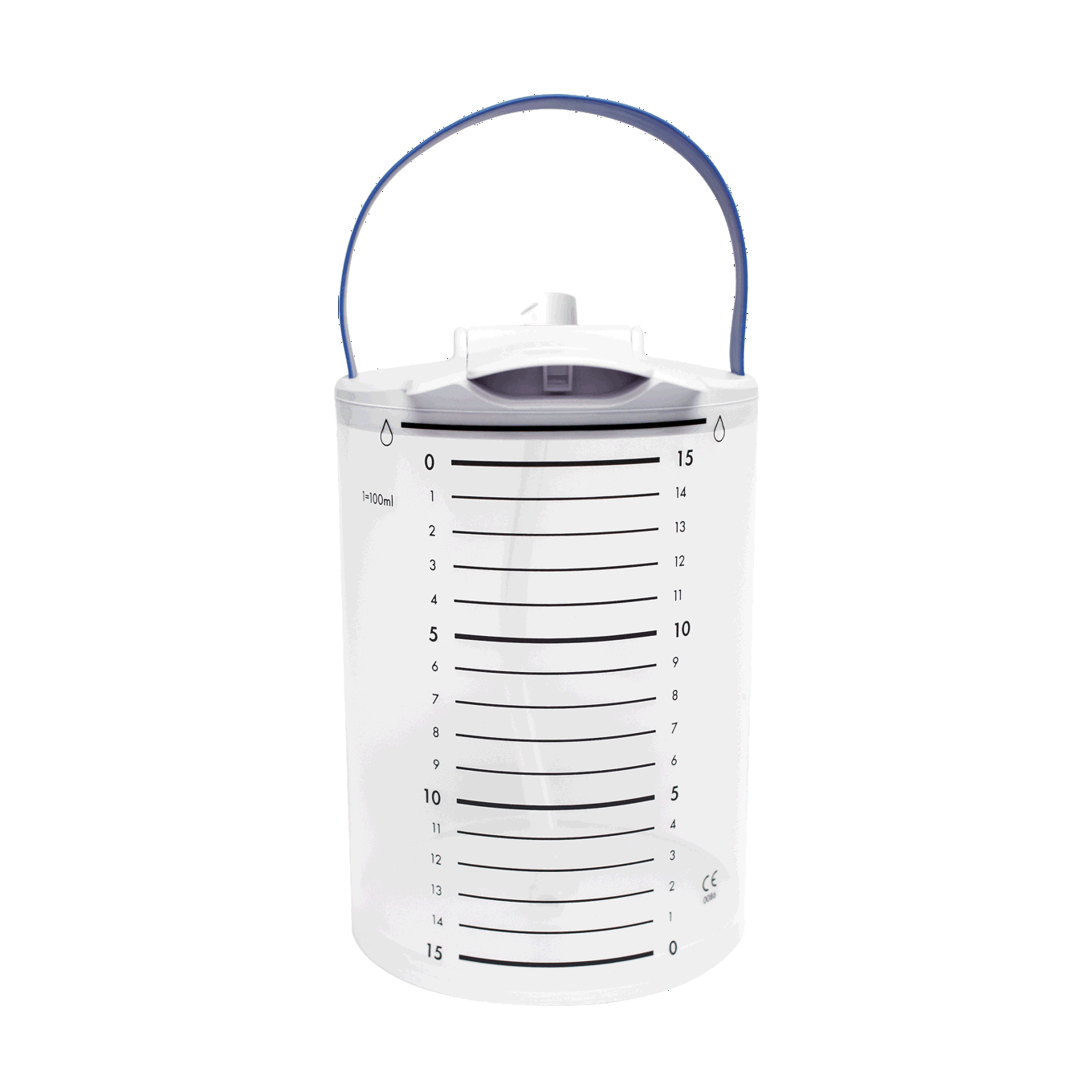

Water Container

  • Sturdy and stable 1.5 liter container, yet collapsible for minimal space when not used.
  • Two scales make it easy both to fill up desired volume and to follow the instilled amount of water.
  • Lid designed to be easy open and close even with reduced hand function.
  • Practical strap for lifting and hanging of the water container.
  • Integrated lid (no assembly needed).

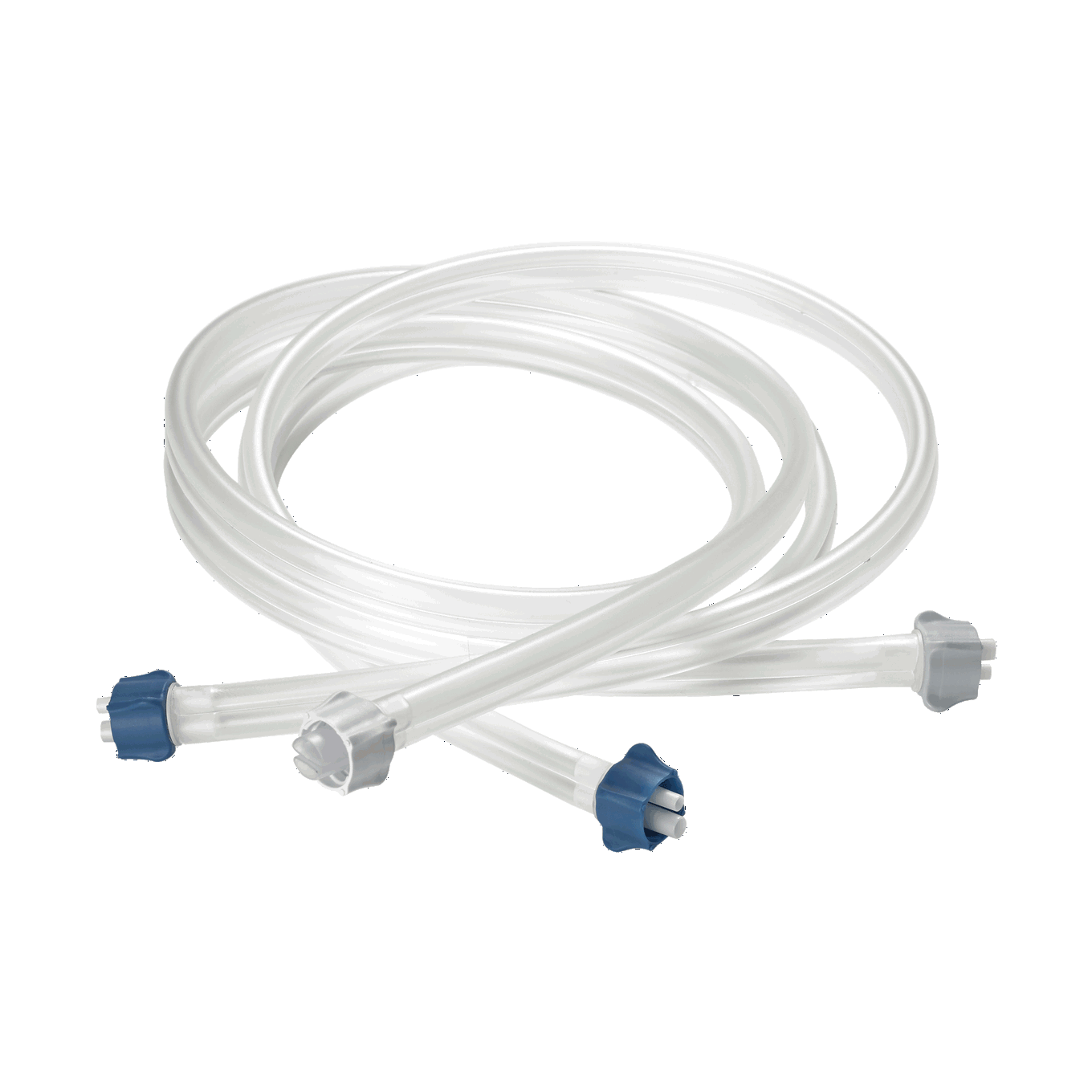

Tube-set

  • Color coded connectors to facilitate assembly.
  • Flexible yet sturdy water and air tubes.
  • Easy to clean.

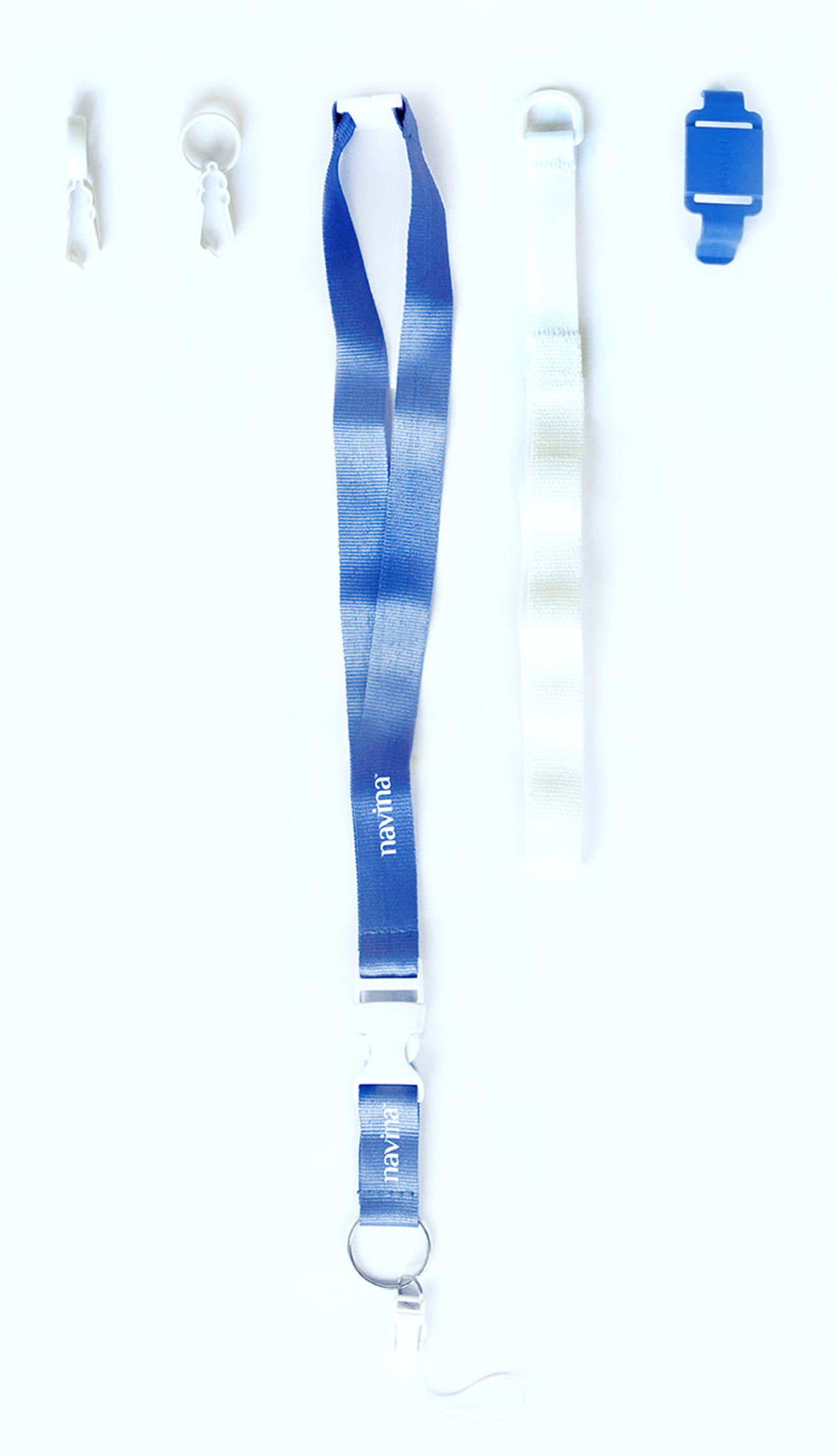

Accessories

  • Grip rings for attachment to the tube if increased grip is needed when inserting the catheter.
  • Lanyard for convenient suspension of the control units around the neck.
  • Positioning strap/clip making it possible to attach the control units on a leg or arm.

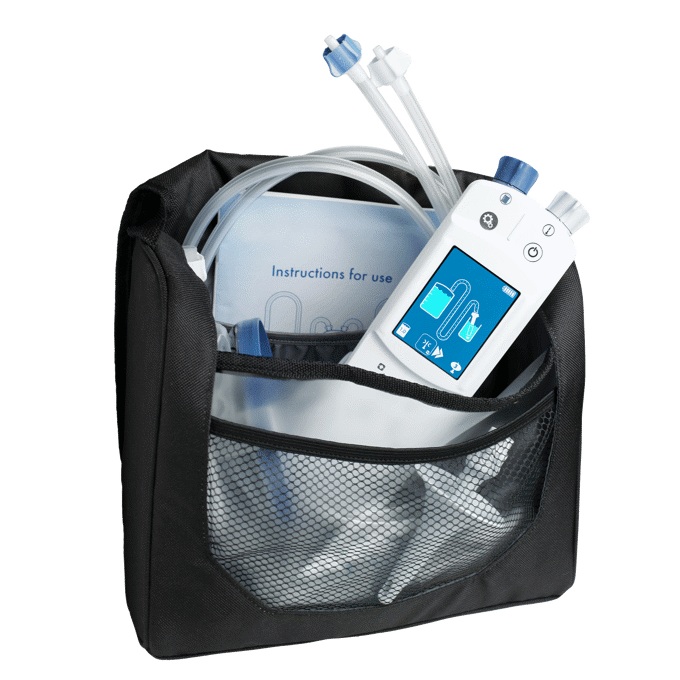

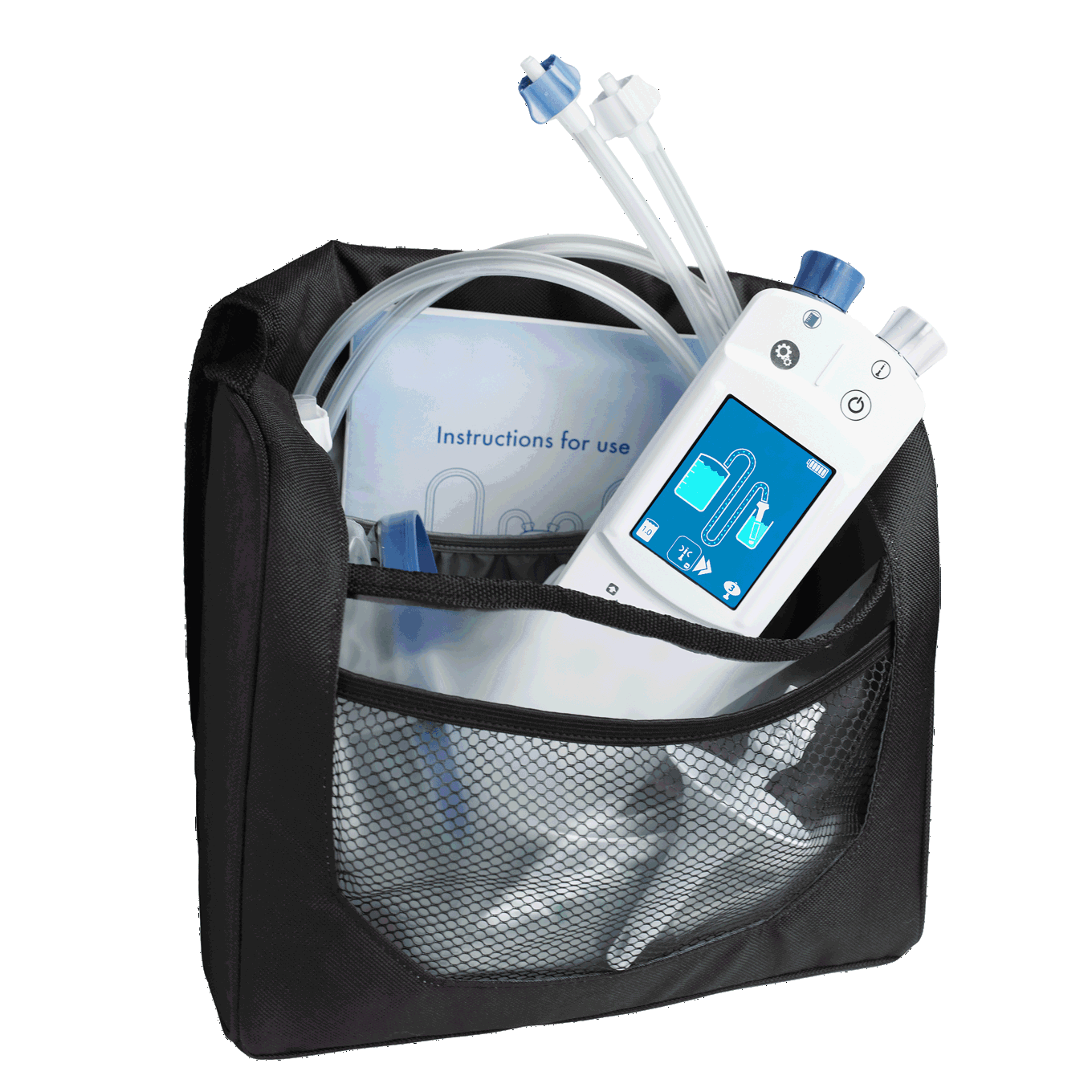

  • Practical Navina case for storage and travel.

Available for

Adults and children from 2 years.

Variants / Tips

Rectal catheter(s) or cone

Lengths

  Total length Insertable length
Navina Regular 135 mm 106 mm
Navina Small 116 mm 86 mm
Navina Cone 116 mm 70 mm

Sizes

Navina Catheter Regular
Navina Catheter Small
Navina Cone

Trademark

Navina TM is the registered trademark of Wellspect HealthCare.

Technical data

Primary package material

Cardboard and Corrugated cardboard

Product environmental label

No

Packaging environmental label

FSC (marking sustainable forestry)



Green Dot

Special storage conditions

Do not store the Navina Smart System components in direct sunlight.

Shelf life

All Navina Irrigation System components have a shelf life of 3.5 years, except the Navina Catheters and the Navina Cone, which have 2 years. When Navina components are packed in sets, the component with shortest shelf life determine the shelf life of the set.

Product range

To get you started there is a Navina Start set and for your continuous needs there are consumable sets as well as catheter sets.

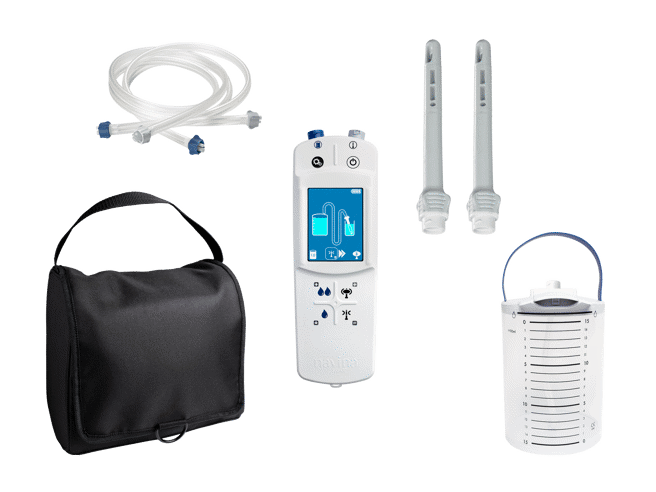

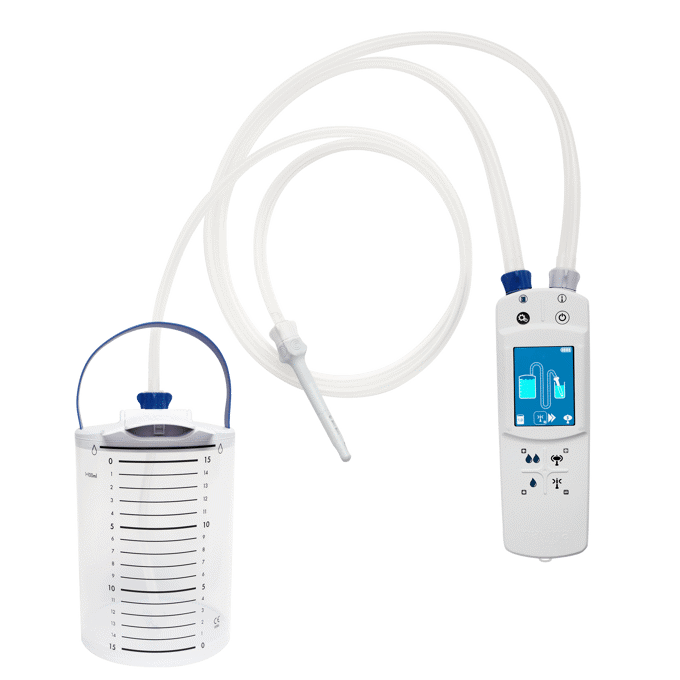

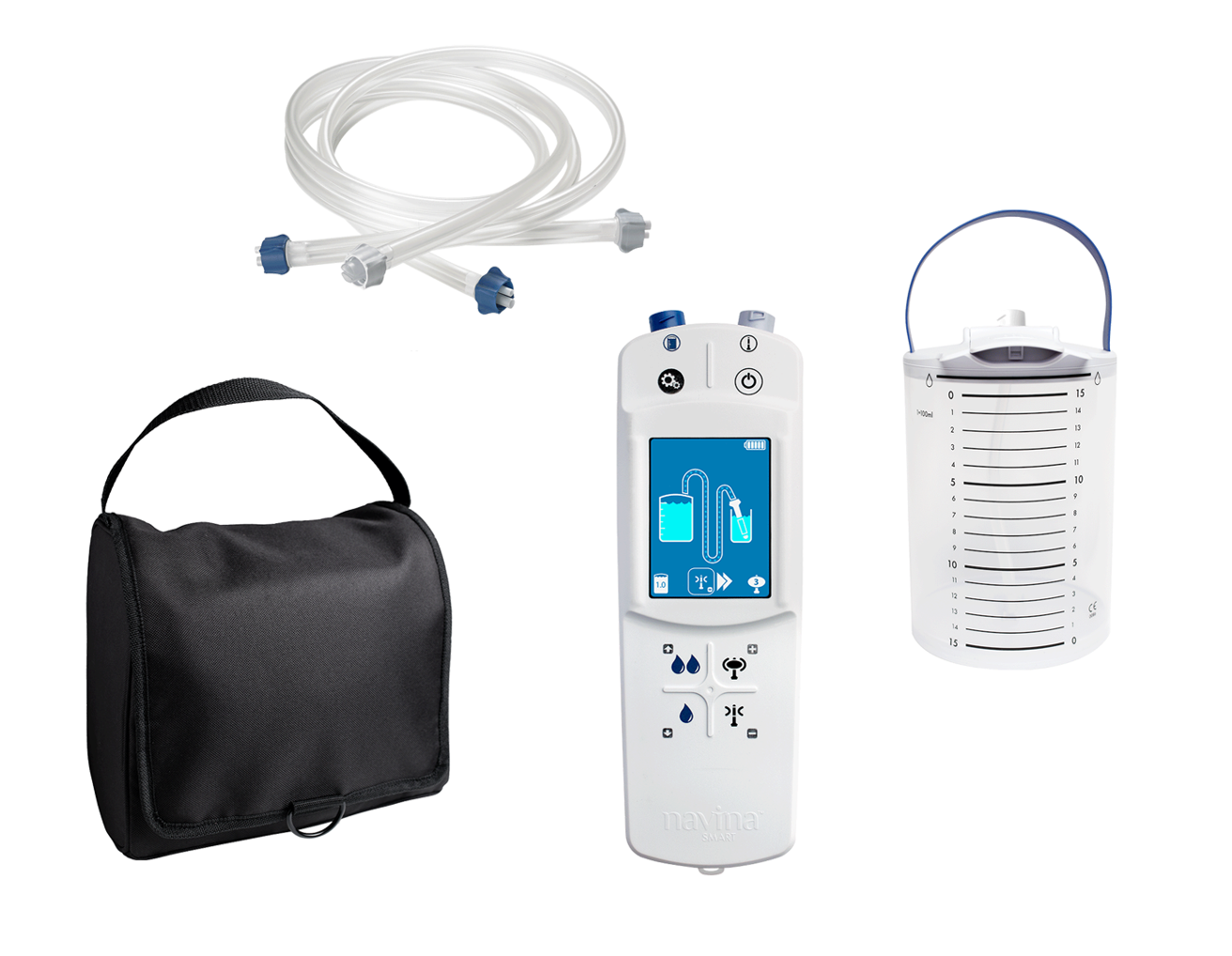

  1. Navina Smart System Regular

    Article number
    69009 40
    Product brand name
    Navina Smart System Regular
    Included parts

    1 Navina Smart Control unit (400 uses*)
    1 Power adapter (Multiple use)
    1 Cable (Multiple use)
    1 Water container 1.5 liter (15 uses)
    1 Tube set (100 uses)
    2 Rectal catheters Regular (Single use)
    1 Navina case (Multiple use)
    1 Accessory set (Multiple use)

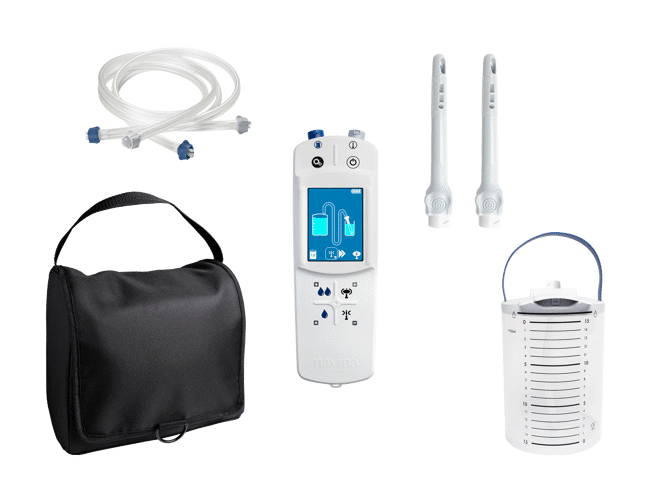

  2. Navina Smart System Small

    Article number
    69010 40
    Product brand name
    Navina Smart System Small
    Included parts

    1 Navina Smart Control unit (400 uses*)
    1 Power adapter (Multiple use)
    1 Cable (Multiple use)
    1 Water container 1.5 liter (15 uses)
    1 Tube set (100 uses)
    2 Rectal catheters Small (Single use)
    1 Navina case (Multiple use)
    1 Accessory set (Multiple use)

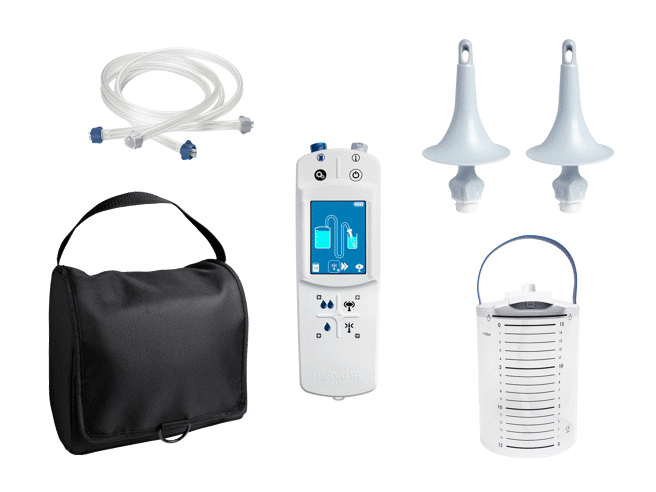

  3. Navina Smart System Cone

    Article number
    69019 40
    Product brand name
    Navina Smart System Cone
    Included parts

    1 Navina Smart Control unit (400 uses*)
    1 Power adapter (Multiple use)
    1 Cable (Multiple use)
    1 Water container 1.5 liter (15 uses)
    1 Tube set (100 uses)
    2 Cones (Single use)
    1 Navina case (Multiple use)
    1 Accessory set (Multiple use)

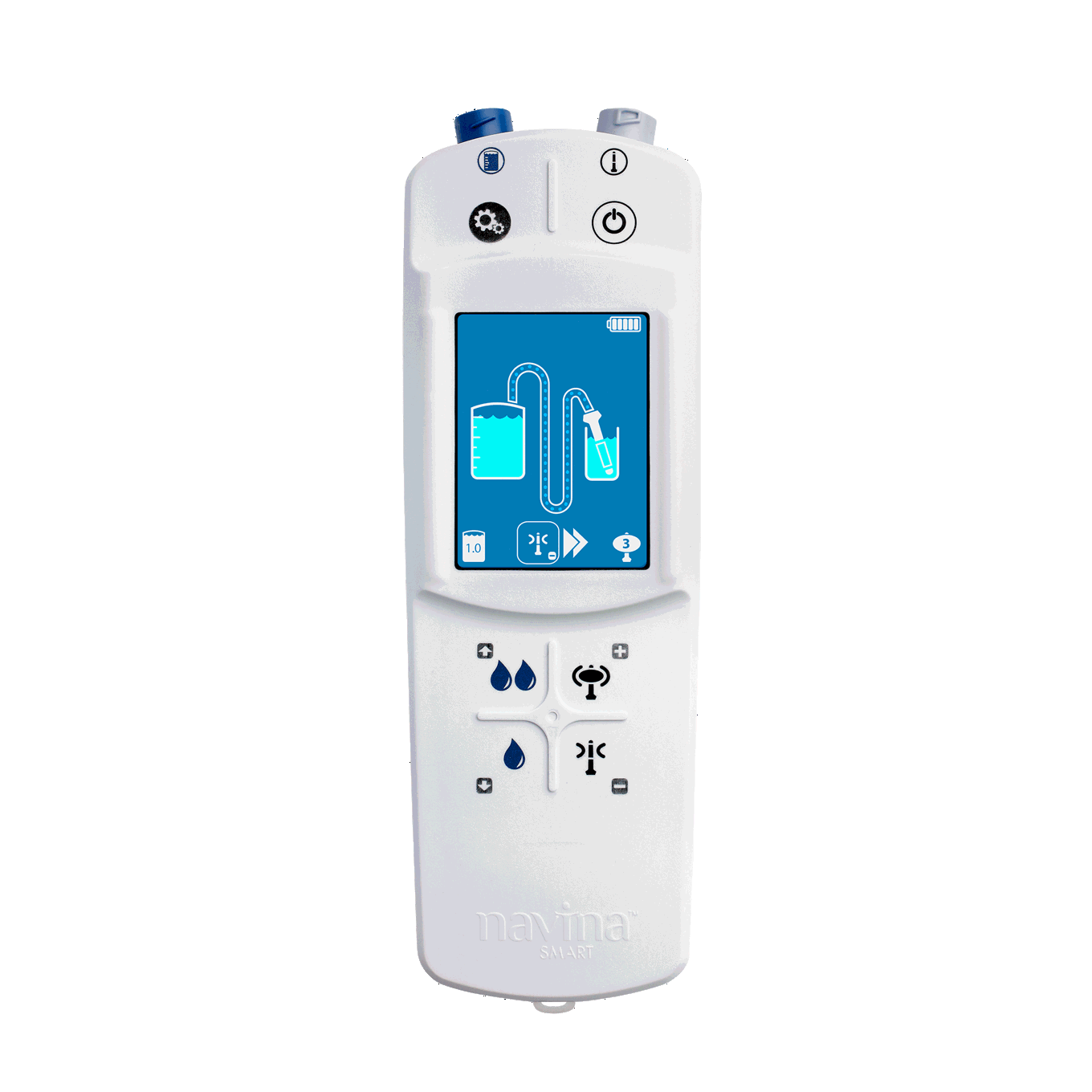

  1. Navina Smart Control Unit

    Article number
    69014 40
    Product brand name
    Navina Smart Control Unit
    Included parts

    1 Navina Smart Control unit (400 uses*)
    1 Power adapter (Multiple use)
    1 Cable (Multiple use)

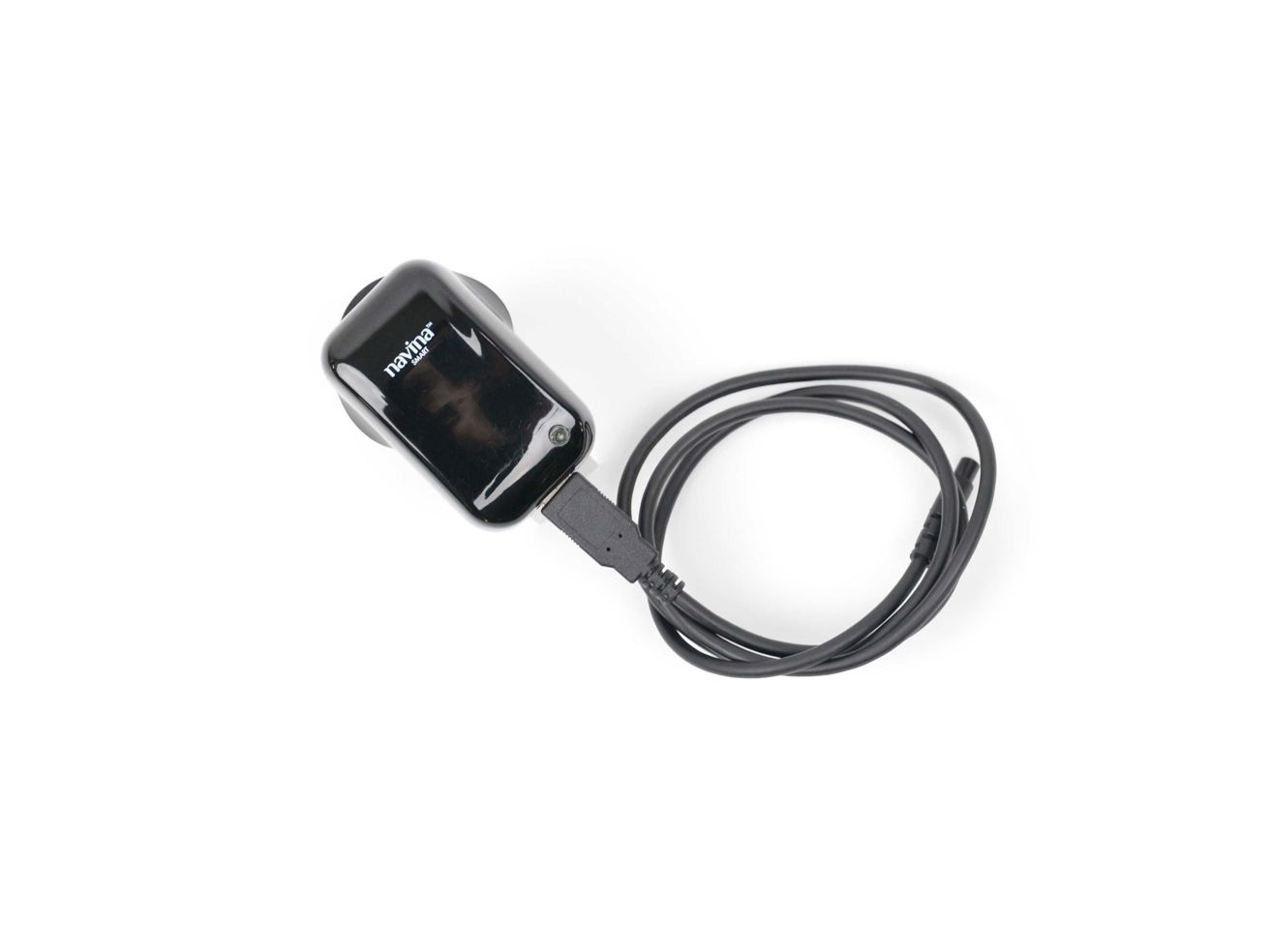

  2. CID63322

    Navina Smart Power Adapter and Cable

    Article number
    69015 40
    Product brand name
    Navina Smart Power Adapter and Cable
    Included parts

    1 Power adapter (Multiple use)
    1 Cable (Multiple use)

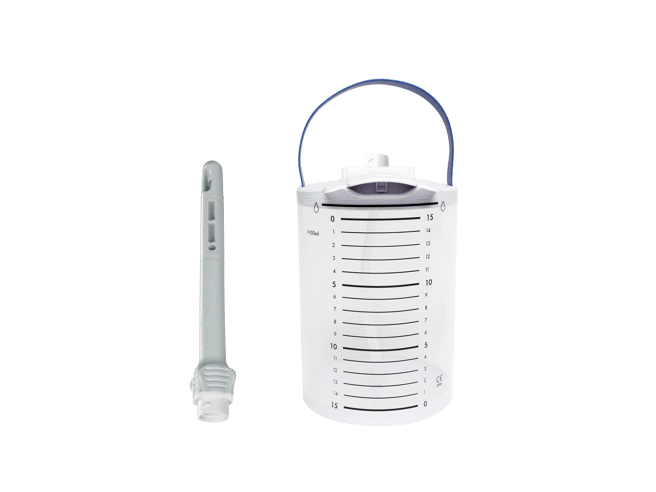

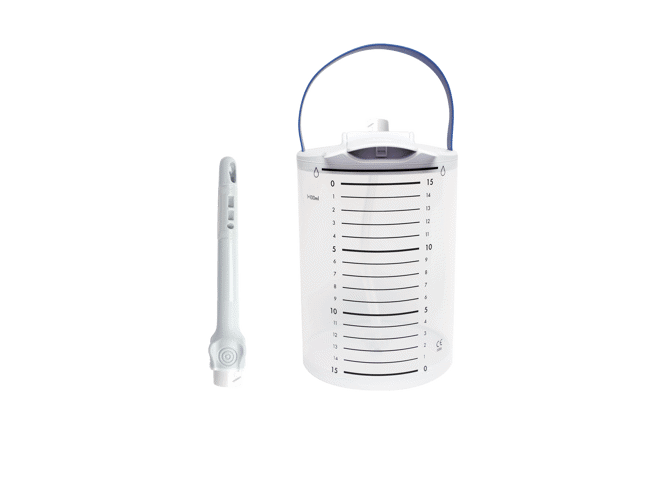

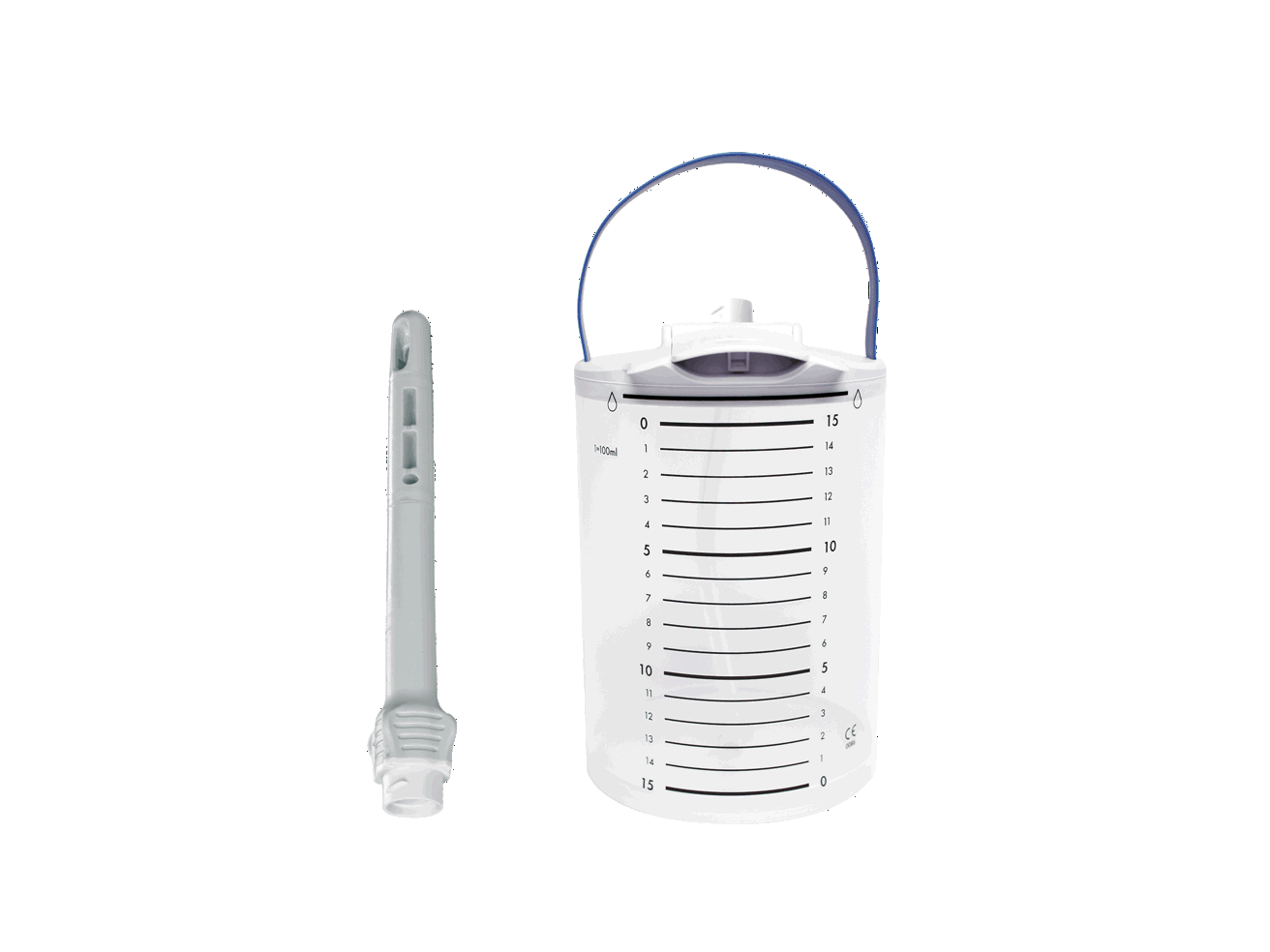

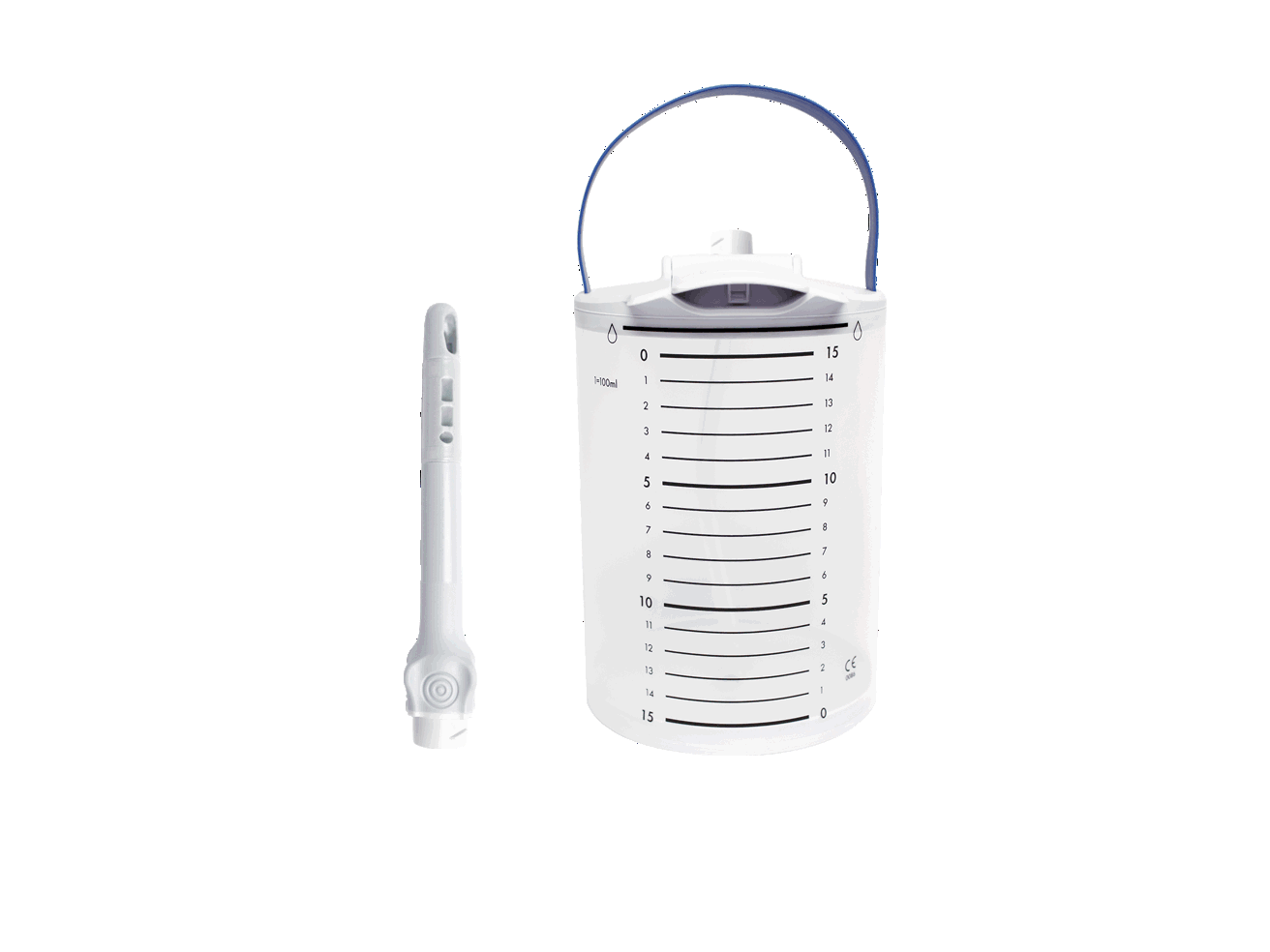

  1. Navina Consumable Set Regular

    Article number
    69003 40
    Product brand name
    Navina Consumable Set Regular
    Included parts

    1 Water container 1.5 liter (15 uses)
    15 Navina catheters Regular (Single use)



  2. Navina Consumable Set Small

    Article number
    69004 40
    Product brand name
    Navina Consumable Set Small
    Included parts

    1 Water container 1.5 liter (15 uses)
    15 Navina catheters Small (Single use)

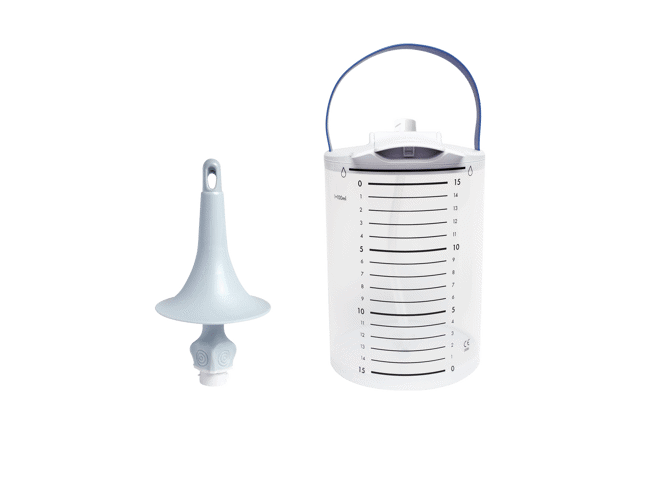

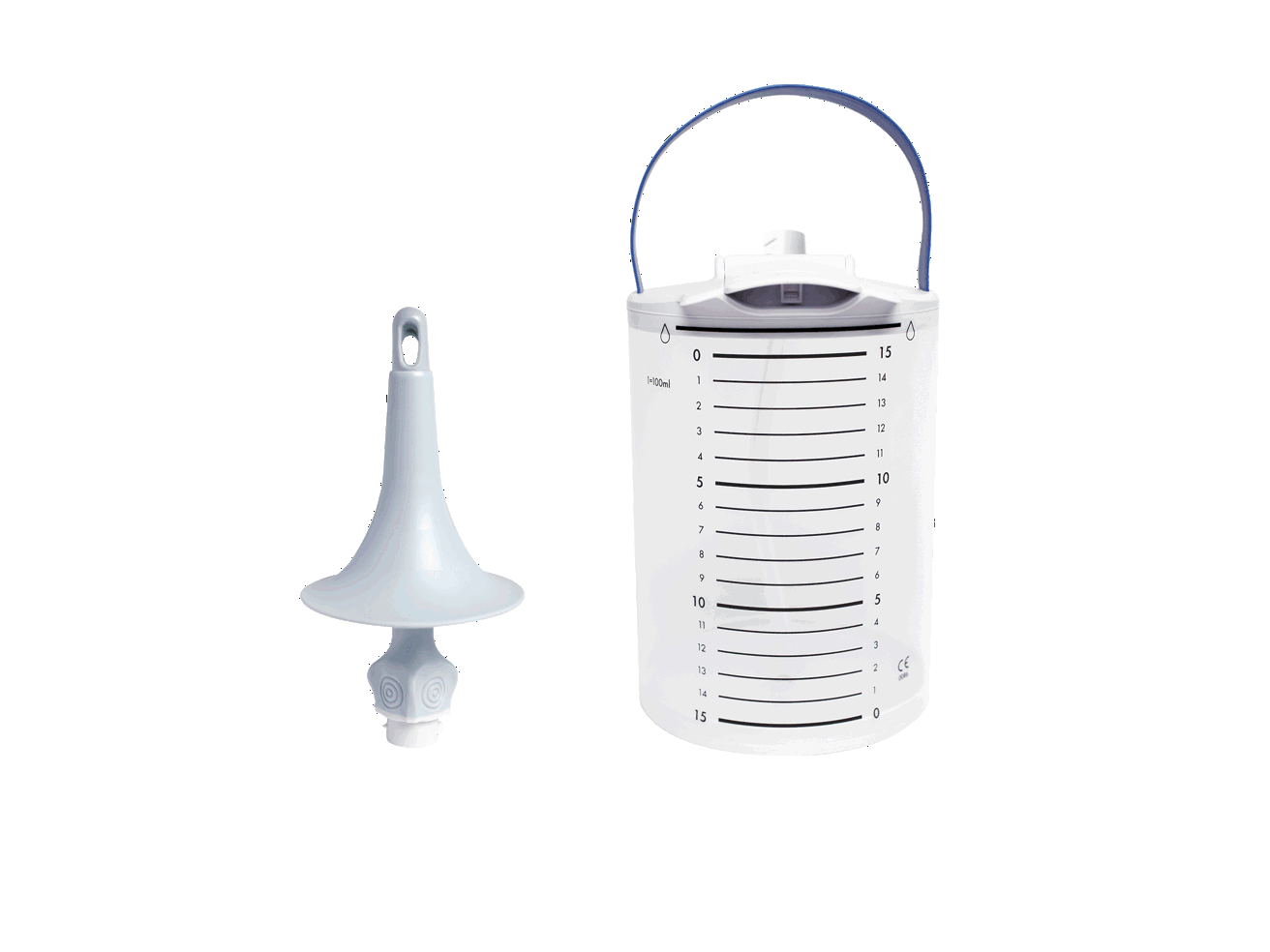

  3. Navina Consumable Set Cone

    Article number
    69016 40
    Product brand name
    Navina Consumable Set Cone
    Included parts

    1 Water container 1.5 liter (15 uses)
    15 Cones (Single use )

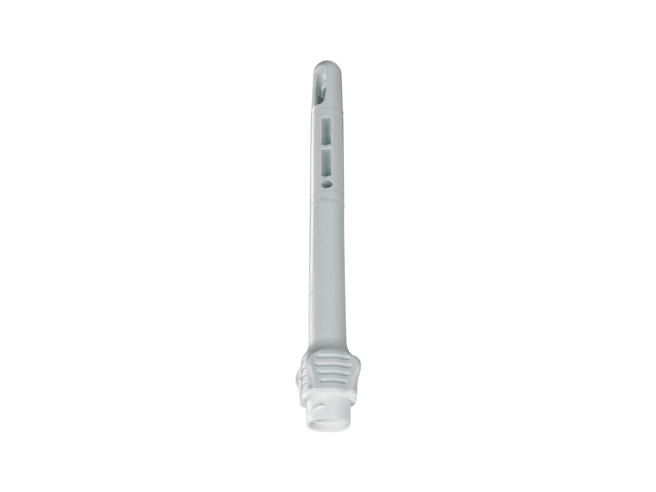

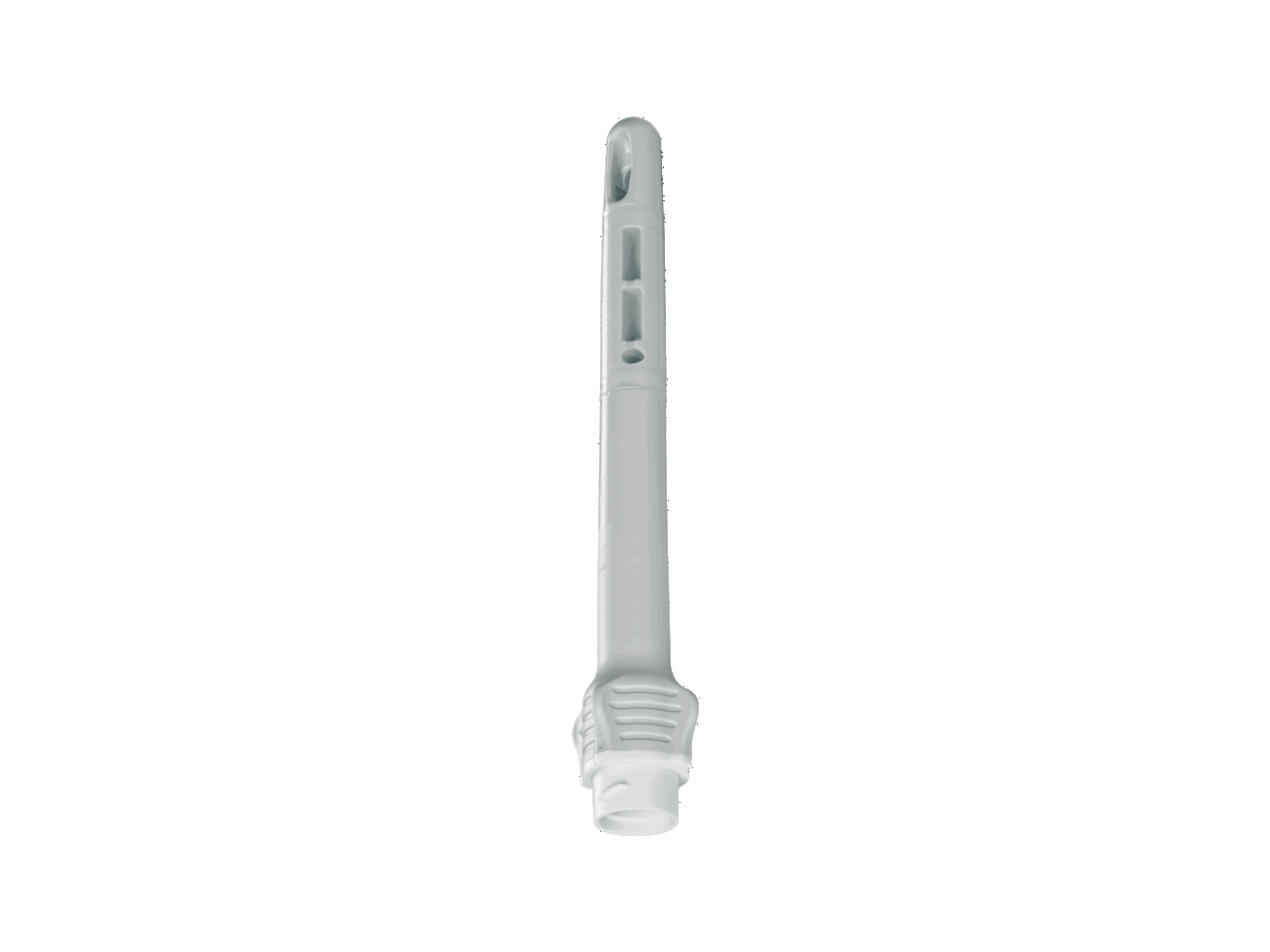

  4. Navina Catheter Set Regular

    Article number
    68940 40
    Product brand name
    Navina Catheter Set Regular
    Included parts

    10 Rectal catheters (Single use)

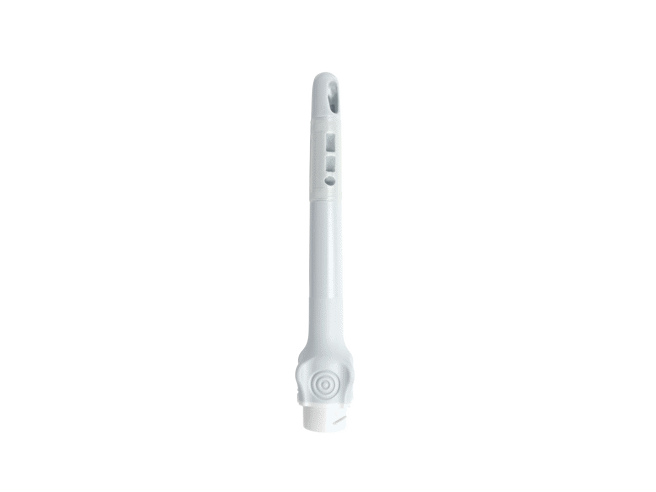

  5. Navina Catheter Set Small

    Article number
    68943 40
    Product brand name
    Navina Catheter Set Small
    Included parts

    10 Rectal catheters (Single use)

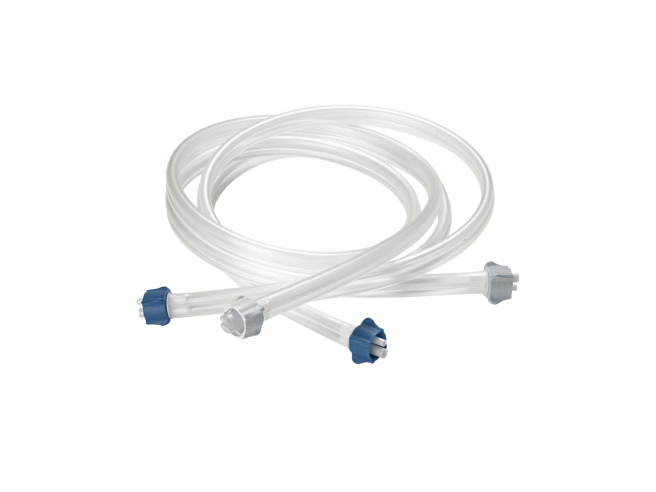

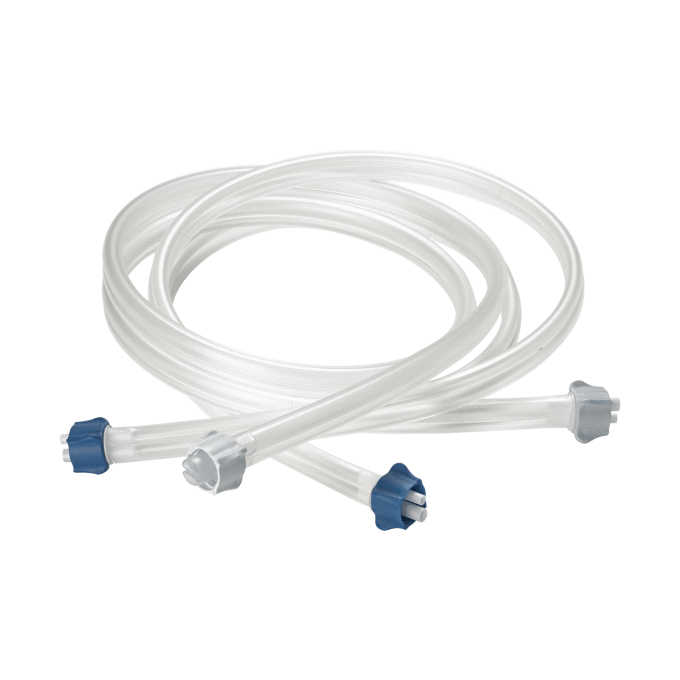

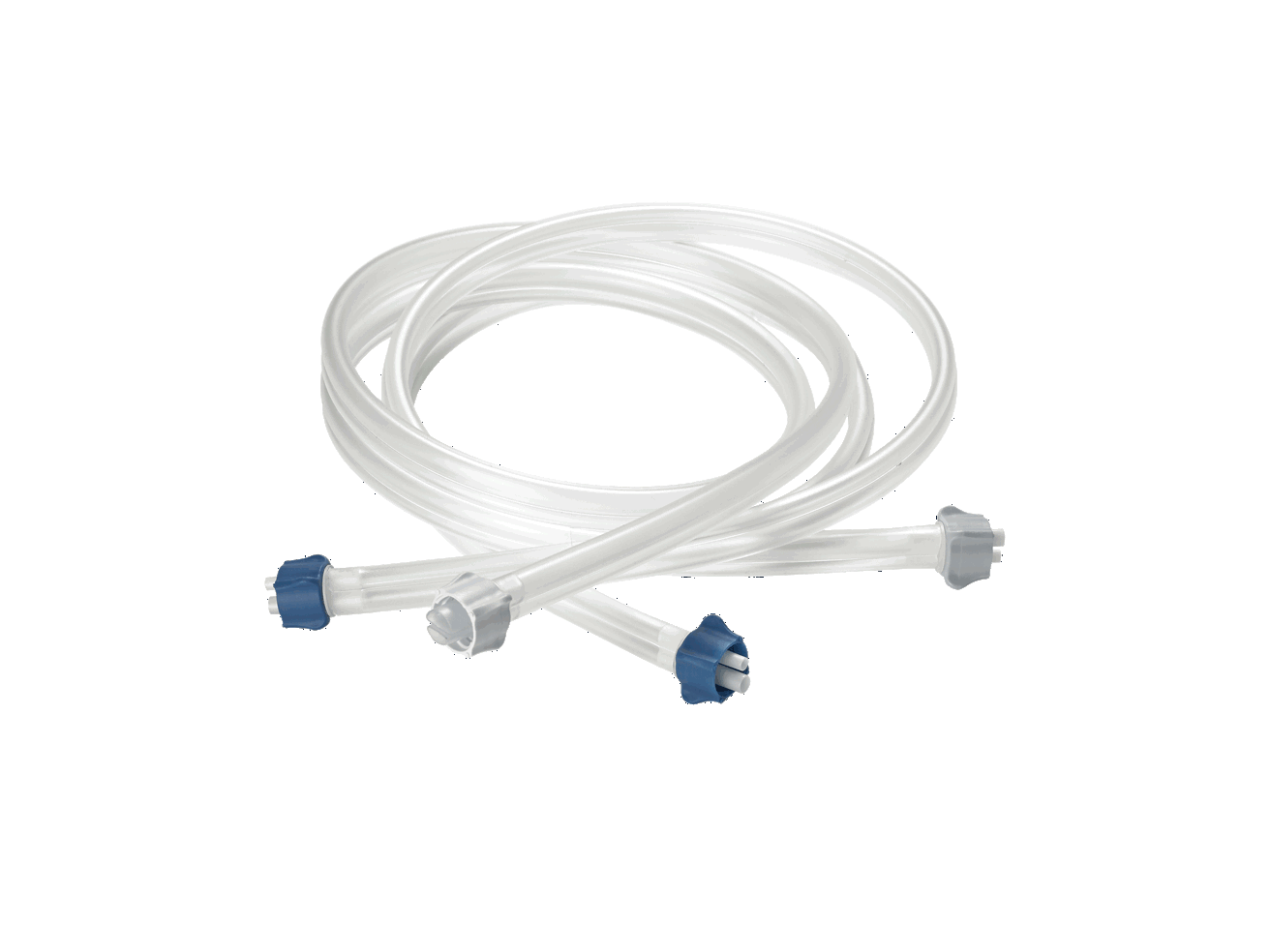

  6. Navina Tube Set

    Article number
    69011 40
    Product brand name
    Navina Tube Set
    Included parts

    1 Catheter/Cone tube (100 uses)
    1 Water container tube (100 uses)

  7. Navina Accessories

    Article number
    69012 00
    Product brand name
    Navina Accessories
